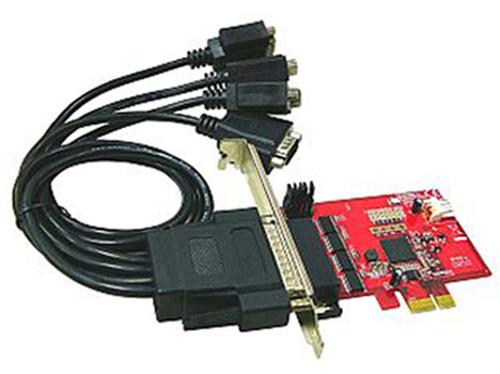

Radič Kouwell IO-107 4x Serial ř

Názov produktu:

Radič Kouwell IO-107 4x Serial ř

Popis produktu:

Přidává 4 Porty RS232 pomocí PCI Express x1 slotu při rychlosti 920Kbps & 128-byte deep FIFO do systému

Vlastnosti
1. PCI Express
o Includes an additional Low profile PCI Bracket
o Compliant with PCI Express Specification, revision 1.0a
o 1-lane 2.5Gbps PCI Express host interface
o Low Profile PCI Form Factor
o Fully RoHS compliant

2. RS232 (UART) Serial Port
o Four 16C950 High performance UART DB9M channels
o 128-byte deep FIFO per transmitter and receiver
o Superset and backward compatible to 16C550, 16C650, 16C750 and 16C850
o 5VDC Bus Power on each DB9 Port for POS device use
o Individual Jumper to select RI / 5V (from PC power) in each DB9M Port
o Includes one Quad-RS232 fan-out cable
o Supports data transfer rate up to 920 Kbps
o 128 Rx interrupt thresholds
o 128 Tx interrupt thresholds
o 128 flow control thresholds
o Supports Windows Drivers
o Supports 64bit / 32bit Windows Vista
o Chipset: Oxford
