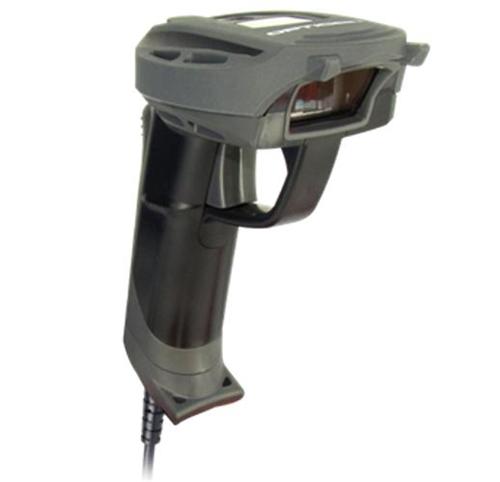

Čítačka Opticon OPR-3001 průmysl

Názov produktu:

Čítačka Opticon OPR-3001 průmysl

Popis produktu:

Opticon OPR-3001 průmyslový laserový snímač čárových kódů, IP54, USB, světlý je Robustní jednořádková laserová čtečka čárových kódů, odolná proti vodě a prachu, vhodná pro průmyslové aplikace. Obsah balení: snímač, kabel

Operating indicators
Visual 1 large LED (red/green/orange)
Non-visual Buzzer
Operating keys
Entry options 1 scan key
Communication
RS232 DB9 PTF connector with external power supply
Keyboard Wedge MiniDIN6 F/M connector
USB Ver. 1.1, HID/VCP, USB-A connector
Power
Voltage requirement 5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.5V) (RS232)
Current consumption Max. 130mA (RS232), max. 125mA (Keyboard Wedge and USB)
Barcode scanner Optics
Light source 650 nm visible laser diode
Scan method Bi-directional scanning
Scan rate 100 scans/sec
Trigger mode Manual, auto-trigger
Reading pitch angle -35 to 0^(o), 0 to +35^(o)
Reading skew angle -50 to -8°, +8 to +50°
Reading tilt angle -20° to 0^(o), 0 to +20^(o)
Curvature R>15 (EAN8), R>20 (EAN13)
Min. resolution at PCS 0.9 0.127 mm / 5 mil
Min. PCS value 0.45
Depth of field 30 - 590 mm / 1.18 - 23.23 in (1.0 mm / 39 mil), 10 - 360 mm / 0.39 - 14.17 in (0.5 mm / 20 mil), 10 - 200 mm / 0.39 - 7.87 in (0.25 mm / 10 mil), 10 - 90 mm / 0.39 - 3.54 in (0.15 mm / 6 mil), 20 - 60 mm / 0.79 - 2.36 in (0.127 mm / 5 mil), at PCS 0.9 Code 39
Supported Symbologies
Barcode (1D) JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code Chinese Post, Korean Postal Authority code
2D code Composite codes, MicroPDF417, PDF417
Durability
Temperature in operation -10 to 60 °C / 14 to 140 °F
Temperature in storage -30 to 70 °C / -22 to 158 °F
Humidity in operation 5 - 90% (non-condensing)
Humidity in storage 5 - 90% (non-condensing)
Ambient light immunity Fluorescent 4,000 lx max, Direct sun 80,000 lx max, Incandescent 4,000 lx max
Drop test 2 m / 6.5 ft drop onto concrete surface
Vibration test 10 - 100 Hz with 2G for 30 min
Protection rate IP 54
Physical
Dimensions (w x h x d) 68 x 155 x 150 mm / 2.68 x 6.10 x 5.91 in
Weight body Ca. 230 g / 8.1 oz (excl. cable)
Case ABS, Black or White
Regulatory & Safety
Product compliance CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II

Obsah balení
- Čtečka
- Návod
- Kabeláž
