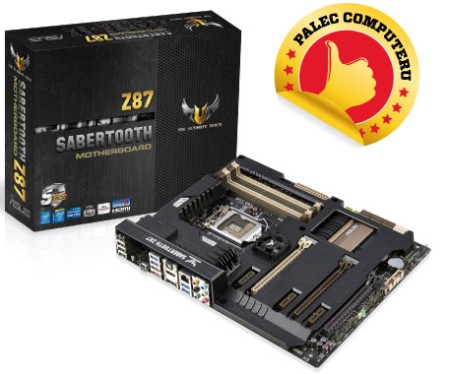

Základná doska Asus SABERTOOTH Z

CPU:
*Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
*Supports Intel® 22 nm CPU
*Supports Intel® Turbo Boost Technology 2.0

Čipová sada:
*Intel® Z87

Paměť:
*4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory
*Dual Channel Memory Architecture
*Supports Intel® Extreme Memory Profile (XMP)

Grafika:
*Integrated Graphics Processor
*Multi-VGA output support : HDMI/DisplayPort ports
*Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
*Supports DisplayPort with max. resolution 3840 x 2160 @ 60 Hz
*Maximum shared memory of 1024 MB
*Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support:
*Supports NVIDIA® Quad-GPU SLI™ Technology
*Supports AMD Quad-GPU CrossFireX™ Technology

Rozšiřující sloty:
*2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
*1 x PCIe 2.0 x16 (x4 mode, black)
*3 x PCIe x1

Úložný prostor:
Intel® Z87 chipset:
*6 x SATA 6Gb/s port(s), brown
*Support Raid 0, 1, 5, 10
*Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
ASMedia® ASM1061 controller:
*2 x SATA 6Gb/s port(s), beige
ASMedia® ASM1061 controller:
*2 x eSATA 6Gb/s port(s), red

LAN:
*Intel® I217V, 1 x Gigabit LAN Controller(s)

Audio:
*Realtek® ALC1150 8-Channel High Definition Audio CODEC
*Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
*High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
*Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
*Optical S/PDIF out port(s) at back panel
*BD Audio Layer Content Protection

USB porty:
*Intel® Z87 chipset: 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
*Intel® Z87 chipset: 8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

Zadní I/O porty:
*1 x DisplayPort
*1 x HDMI
*2 x eSATA 6Gb/s
*1 x LAN (RJ45) port(s)
*4 x USB 3.0 (blue)
*4 x USB 2.0
*1 x Optical S/PDIF out
*6 x Audio jack(s)
*1 x USB BIOS Flashback Button(s)

Vnitřní I/O porty:
*1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
*2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
*1 x TPM header
*8 x SATA 6Gb/s connector(s)
*1 x CPU Fan connector(s) (1 x 4 -pin)
*1 x CPU OPT Fan connector(s) (1 x 4 -pin)
*4 x Chassis Fan connector(s) (4 x 4 -pin)
*2 x Assistant Fan connector(s) (2 x 3 -pin)
*1 x S/PDIF out header(s)
*1 x 24-pin EATX Power connector(s)
*1 x 8-pin ATX 12V Power connector(s)
*1 x Front panel connector(s)
*1 x Front panel audio connector(s) (AAFP)
*1 x DirectKey Button(s)
*1 x DRCT header(s)
*1 x MemOK! button(s)
*3 x Thermal sensor connector(s)
*1 x Clear CMOS jumper(s)

Příslušenství:
*User\'s manual
*Accessory Guide
*ASUS Q-Shield
*4 x SATA 6Gb/s cable(s)
*1 x SLI bridge(s)
*1 x Q-connector(s) (2 in 1)
*2 x Accessory Fan(s) ( 35 mm )
*1 x TUF Certification card(s)
*1 x TUF 5 Year Warranty manual(s) (by region)
*1 x TUF Inside sticker(s)

BIOS:
*64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
*ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
*WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc:
*Drivers
*ASUS Utilities
*ASUS/TUF CPU-Z
*Anti-virus software (OEM version)

Form Factor:
*ATX Form Factor
*12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
