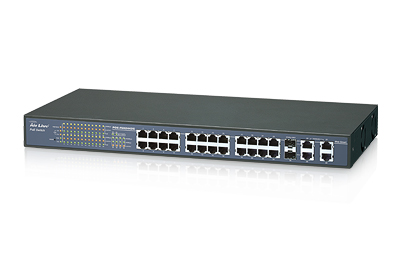

Switch AirLive POE-FSH2422G-250

Názov produktu:

Switch AirLive POE-FSH2422G-250

Popis produktu:

24 x 10/100Mbps PoE Ethernet Ports
2 x 10/100/1000Mbps Gigabit Ethernet Port
2 x Mini-GBIC SFP Combo Ports
802.3af 48V PoE Standard
250 Watt Total Power
Web Management,Tag VLAN and Mac Binding
Bandwidth Control and Port Trunking
IGMP and Spanning Tree
19\' Rack Mountable
Supply Power to 802.3af PoE IP Cameras and APs!

Standard IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.1Q VLAN
IEEE 802.1p QoS / Class of Service, Priority Protocols
IEEE802.3 Nway Auto-negotiation
IEEE802.3af Power over Ethernet
Interface 10/100BaseTX with RJ-45 Connectors: 24 port with PoE
10/100/1000BaseT with RJ-45 Connectors: 2
Combo SFP Open Slots: 2
Smart Function

Port Security Filter:
- TCP / UDP port based
- MAC Address based
- IP Address based
VLAN Setting:
- Tag Based: 32
- Port Based: 26
- VLAN ID ( Up to 4094 K )
QoS:
- Priority ( Port Based / TOS / Diffserv / DSCP/IPv4/IPv6 )
- Class of Service Configuration
- TCP / UDP Port Based
Management Function Password-protected Access
On / Off PoE Port Settings
Web-Based Management
Bandwidth Control
Broadcast Storm Control
Port Mirroring
Port Configuration
Programmable aging timer
IGMP Snooping
Trunk ( up to 4 Ports per Group, 2 Groups per Device)
Provide DHCP Client
Quality of Service: up to 2 queues
PoE Up to 15.4W for PoE per port
Maximum 250W for all PoE ports (per device)
Power Pin:
- 1,2,3,6
Protocol CSMA/CD
Topology Star
Filtering/Forwarding Rates 1000Mbps port – 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps

Buffer memory
2.75Mb
Address table 4K
LED indicators Per Port: Link/Act
PoE: Act / Status
Per Unit: Power
Power Input 100 - 240VAC 50 /60Hz, Internal Universal Switching Power
Power Output 48V /DC Per Port Output
